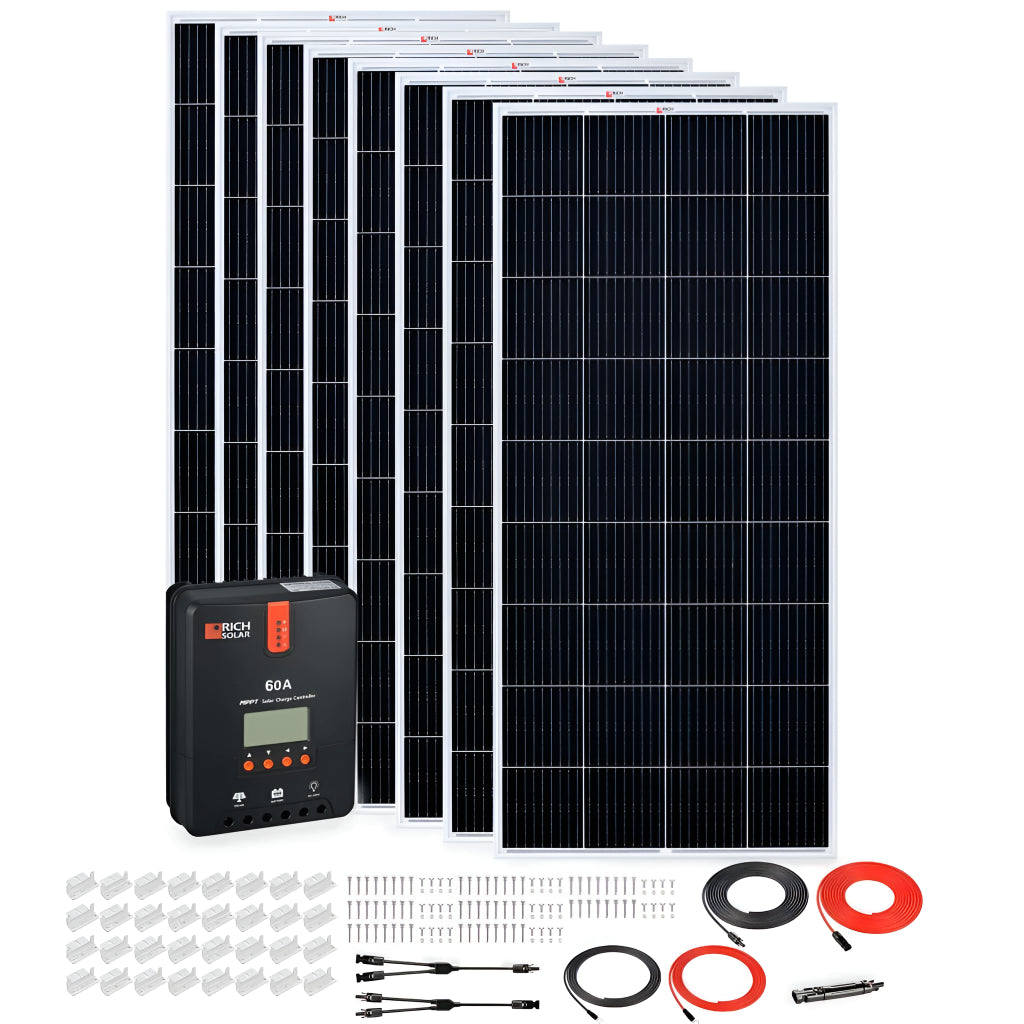

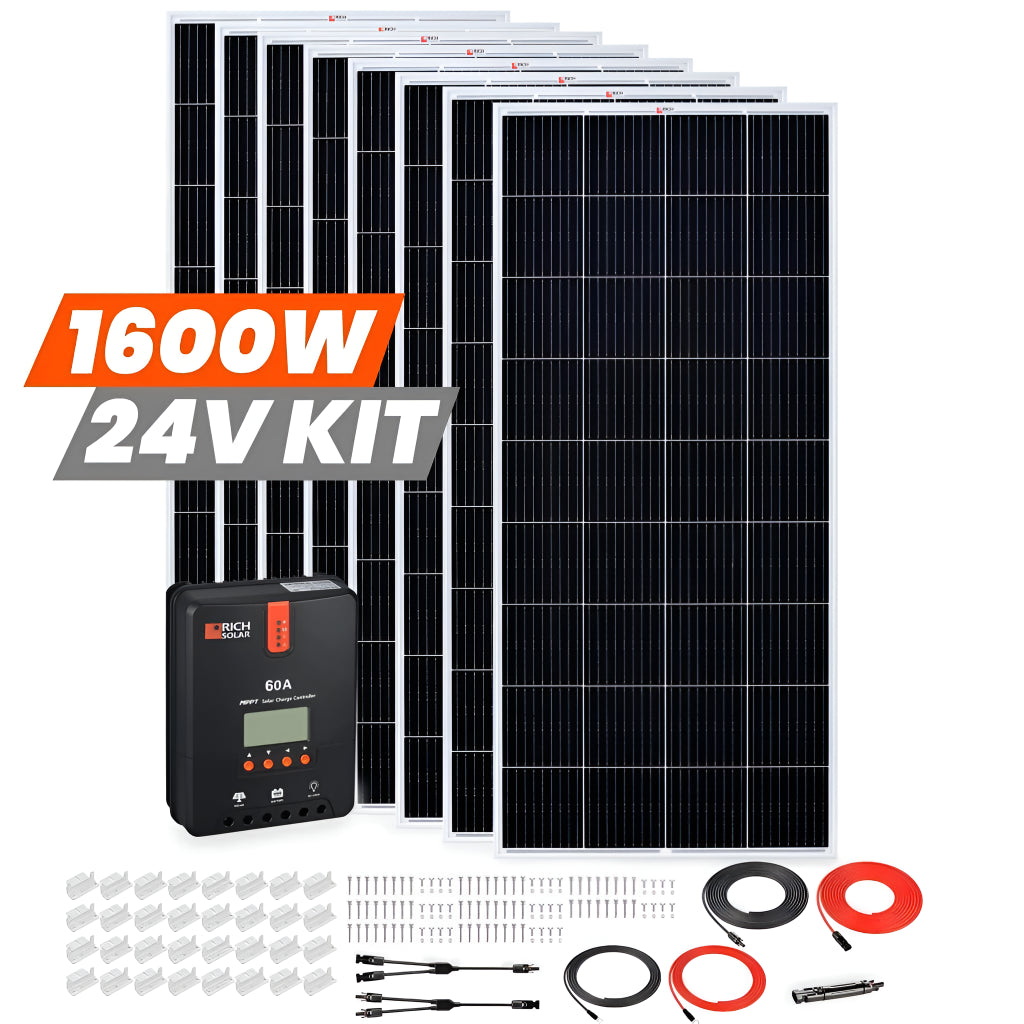

1600 Watt Solar Kit

The 1600 Watt Solar Kit is our largest 24V kit, featuring 8 high-efficiency 200W Monocrystalline solar panels with 9 busbars and a 60A MPPT charge controller. This kit can be paired with a 400AH 24V battery bank and is capable of powering most off-grid applications. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat, or trailer with clean, reliable energy.

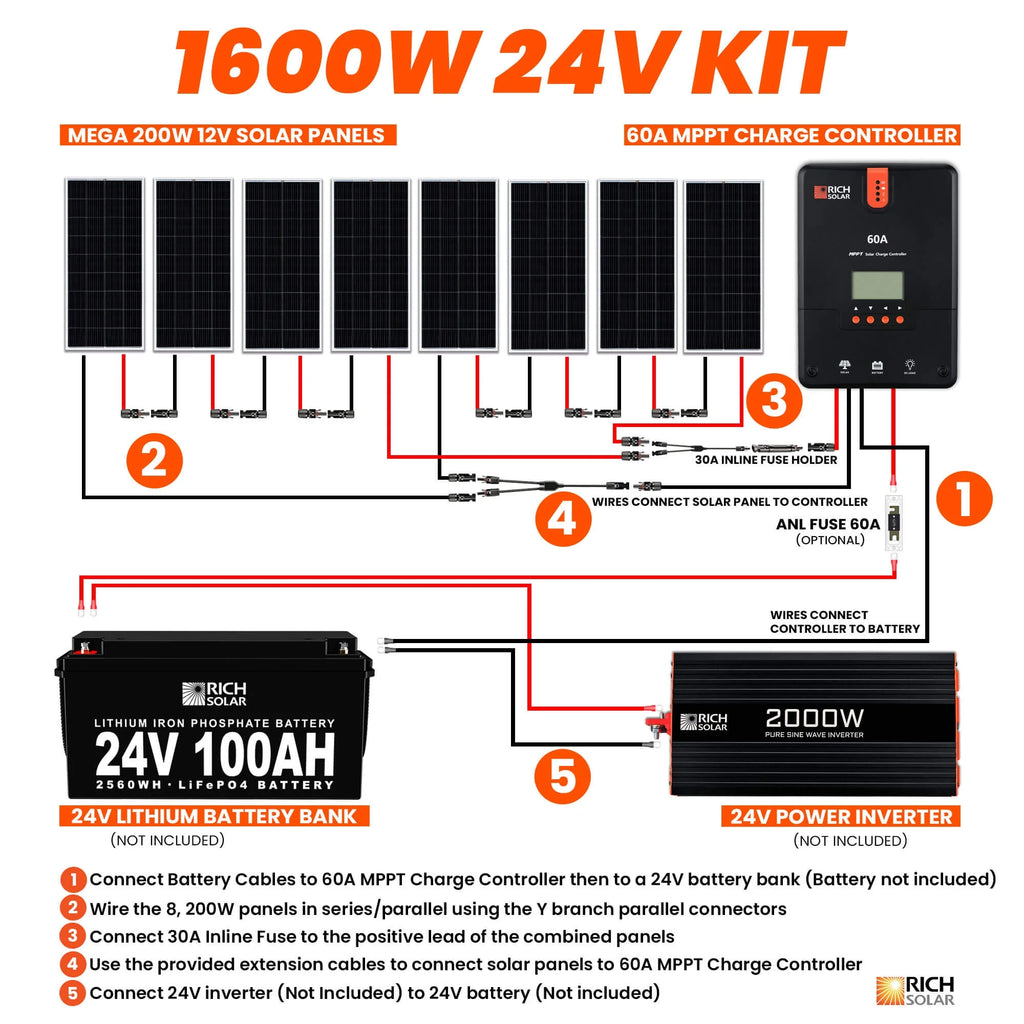

Package Contents

• 8 x 200 Watt Monocrystalline Solar Panel

• 1 x 60A MPPT Solar Charge Controller

• 1 x 20' #10 Gauge Solar Cable (Red) – connects solar panel to controller

• 1 x 20' #10 Gauge Solar Cable (Black) – connects solar panel to controller

• 1 x 10' #4 Gauge Battery Cable (Red) – connects controller to battery

• 1 x 10' #4 Gauge Battery Cable (Black) – connects controller to battery

• 8 x Mounting Z Brackets (one set of 4)

• 1 x 30A Inline Fuse Holder with Fuse

• 1 x Y Branch Parallel Adapters

Specifications

• Model: RS-K1660

• Solar Panel Type: Monocrystalline Solar Panel

• Number of Panels: 8

• Peak Wattage (ea): 200W

• Maximum Power (Pmax): 200W

• Maximum Power Voltage (Vmp): 20.4V

• Maximum Power Current (Imp): 9.80A

• Open Circuit Voltage (Voc): 24.3V

• Short Circuit Current (Isc): 10.2A

• Maximum Input Voltage: 24V

• Connection: MC4

• Dimensions: 58.7 x 26.8 x 1.4 in

• Height: 1.4"

• Weight: 26.5 lbs

• Coverage Area: 230 sq ft

• Material: Tempered Glass, Aluminum, Monocrystalline Silicon

• Color: Black

• Recommended Use: RV, Outdoor Activity

Features

• High Efficiency Solar Panel: Highest grade monocrystalline solar cells with anti-reflective coating to maximize light absorption for optimal output.

• Simple Installation: Pre-assembled wiring harness requires no crimping tools. All products are compatible with each other, making expansions, upgrades, or additions simple — just plug in and go.

• Reliable and Convenient: Digital MPPT charge controller provides real-time updates of volts, amps, and amp hours, while protecting your system from overcharging.
